Automated Bracket Loader for Refrigerator Cabinet Assembly
A custom pick-rotate-transfer-place machine engineered by J+H Automation Solutions to load brackets into the corner of refrigerator cabinets ahead of welding — replacing repetitive manual handling with fast, repeatable pneumatic automation.
Project Overview
In high-volume refrigerator manufacturing, corner brackets must be positioned precisely inside each cabinet before they are welded into place. Done by hand, the task is repetitive, ergonomically demanding, and prone to placement variation that slows the weld station downstream.
J+H Automation Solutions engineered this automated bracket loader to take over the entire handling sequence. The machine picks each bracket from its supply position, rotates it into the correct weld orientation, transfers it across the workcell, and deposits it into the cabinet corner — accurately, and on every cycle.
The Result
By automating bracket loading, the manufacturer gains consistent part presentation at the weld station, reduced operator strain, and a cycle time that keeps pace with the cabinet line. Because the machine is built on proven pneumatic components rather than complex robotics, it delivers that repeatability with straightforward maintenance and a compact footprint.
This project reflects the kind of right-sized automation J+H specializes in: matching the mechanism to the task instead of over-engineering the solution.
How the Bracket Loader Works
The machine executes a four-stage handling sequence, coordinated so each motion flows directly into the next:
Pick
Precision grippers close on the bracket at its supply position, securing the part with consistent clamping force so orientation is maintained through the entire transfer.
Rotate
A rotary actuator reorients the bracket into its exact weld position — the angle required for it to seat correctly in the refrigerator cabinet corner.
Transfer
Linear thrusters carry the bracket across the workcell in a smooth, guided straight-line motion, keeping cycle time short and placement travel repeatable.
Place
The gripper deposits the bracket into the cabinet corner and releases, leaving the part staged and ready for welding with no manual adjustment required.
Key Components & Engineering

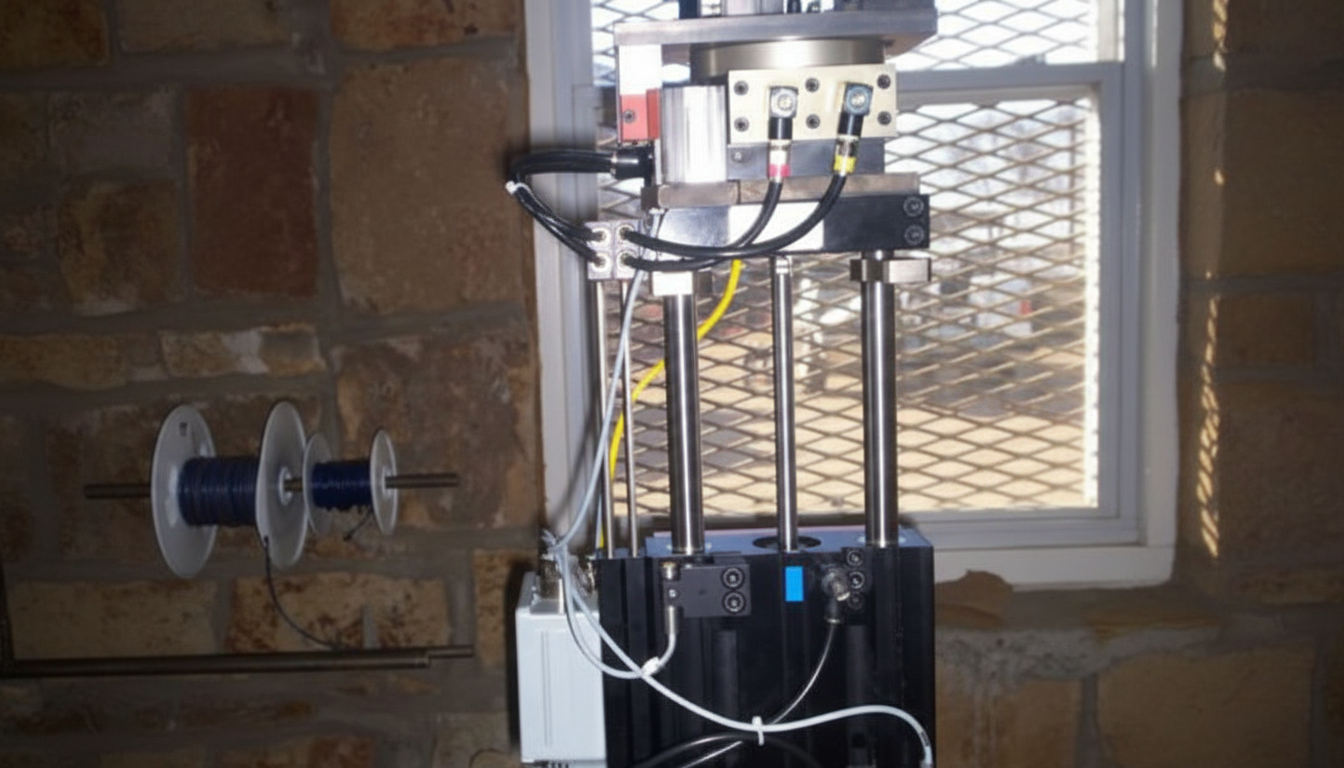

Linear Thrusters
Guided pneumatic thrusters provide the straight-line pick and transfer strokes, combining speed with rigidity so the bracket arrives at the same coordinates every cycle.
Rotary Actuators
Compact rotary actuators handle part reorientation, indexing each bracket from its supply orientation to its weld orientation with precise, repeatable angular positioning.
Precision Grippers
End-of-arm grippers sized to the bracket geometry hold the part securely without deformation, ensuring clean pickup and accurate release into the cabinet corner.
Applications Beyond Appliance Manufacturing
While this machine was built for refrigerator cabinet assembly, the same pick-rotate-transfer-place architecture adapts to a wide range of small-part handling challenges, including:
HVAC & Appliance Production
Loading brackets, clips, and hardware ahead of welding or fastening stations on cabinet and package-unit lines.
Automotive & Metal Fabrication
Presenting stamped or formed components to weld cells, assembly fixtures, and downstream conveyors with consistent orientation.
Built in the USA, Deployed Nationwide
J+H Automation Solutions designs, fabricates, and integrates custom material handling automation from facilities in Hackett, Arkansas and Hockley, Texas, serving manufacturers across the United States.
Every machine — from single workcells like this bracket loader to full assembly line conveyor systems — is engineered around the customer's part, process, and production targets. Explore our automation services or view more completed projects.
Frequently Asked Questions
What does an automated bracket loader machine do?
An automated bracket loader picks up brackets from a supply point, rotates them into the correct weld orientation, transfers them across the workcell, and deposits them precisely into position — in this application, into the corner of a refrigerator cabinet ahead of welding. Automating this step removes a repetitive manual task and delivers consistent part placement cycle after cycle.
What components power the bracket loader?
The machine combines linear thrusters for straight-line pick and transfer motion, rotary actuators to reorient each bracket, and precision grippers that hold the part securely from pickup through placement. The result is a compact, repeatable pick-rotate-place mechanism suited to high-volume appliance production.
Can J+H Automation Solutions build a similar pick-and-place machine for my product?
Yes. J+H Automation Solutions designs and builds custom material handling and pick-and-place automation for manufacturers nationwide from facilities in Hackett, Arkansas and Hockley, Texas. Each machine is engineered around your part geometry, cycle time, and line integration requirements. Contact sales@jhautomationsolutions.com or call (479) 638-8398 to discuss your application.
What industries use bracket loading automation?
Bracket loading and pick-rotate-place automation is common in appliance manufacturing, HVAC production, automotive assembly, and general metal fabrication — any operation where small components must be positioned accurately and repeatedly before welding, fastening, or assembly.
